Machinery

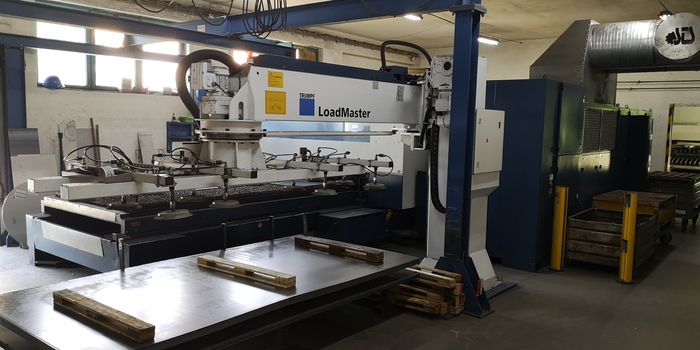

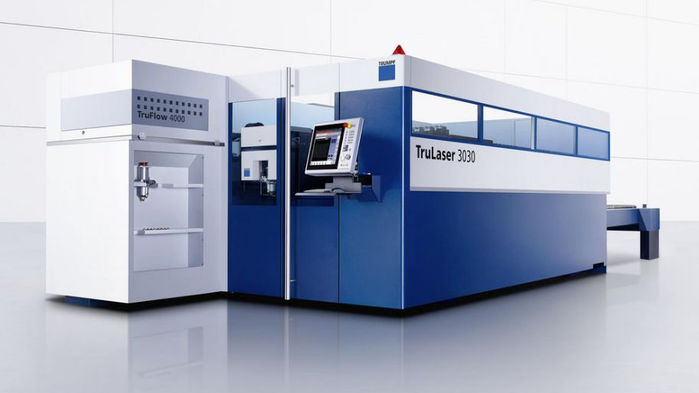

Laser for processing of Trumpf Trulaser 3030 metal-sheets
| SHEET METAL FORMAT | 3000 x 1500 mm |
| STEEL | up to 20 mm |
| STAINLESS | up to 12 mm |
| ALUMINIUM | up to 10 mm |
Laser for processing of Trumpf Trulaser 3030 metal-sheets
Laser for processing of Trumpf Trulaser 3030 metal-sheets
Laser for processing of Trumpf Trulaser 3030 metal-sheets
Laser for processing of Trumpf Trulaser 3030 metal-sheets
Laser for processing of Trumpf Trulaser 3030 metal-sheets

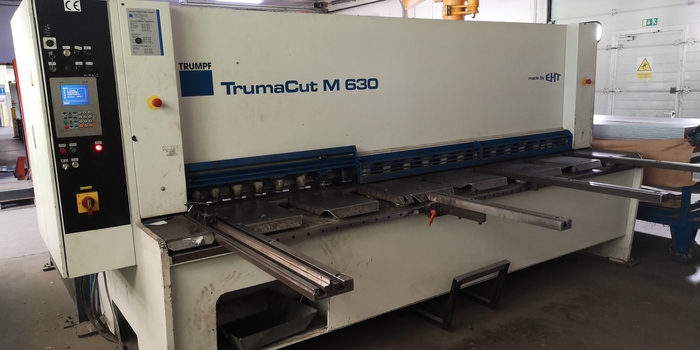

CNC Trumpf TrumaCut M630 shears
| MAXIMUM LENGTH OF CUT MATERIAL | 3000 mm |
| MAXIMUM DENSITY OF MATERIAL AT 3000 MM A CUT | 6 mm |
CNC Trumpf TrumaCut M630 shears
CNC Trumpf TrumaCut M630 shears
CNC TRUMPF TrumaBend V1300 milling press
| BEND LENGTH: | 3230 mm |
| CLAMPING FORCE: | 1300 kN |
CNC TRUMPF TrumaBend V1300 milling press

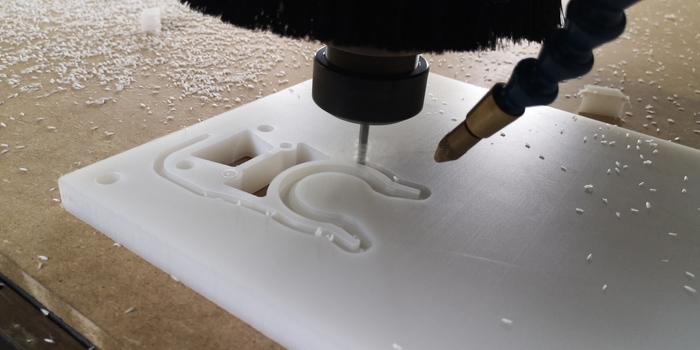

CNC engraving milling machine COMAGRAV Notus Plus
| WORK TABLE DIMENSIONS | 4000 x 2000 mm |
| MOVEMENT AXIS Z | 200 mm |
CNC engraving milling machine COMAGRAV Notus Plus
CNC engraving milling machine COMAGRAV Notus Plus
CNC engraving milling machine COMAGRAV Notus Plus
CNC engraving milling machine COMAGRAV Notus Plus

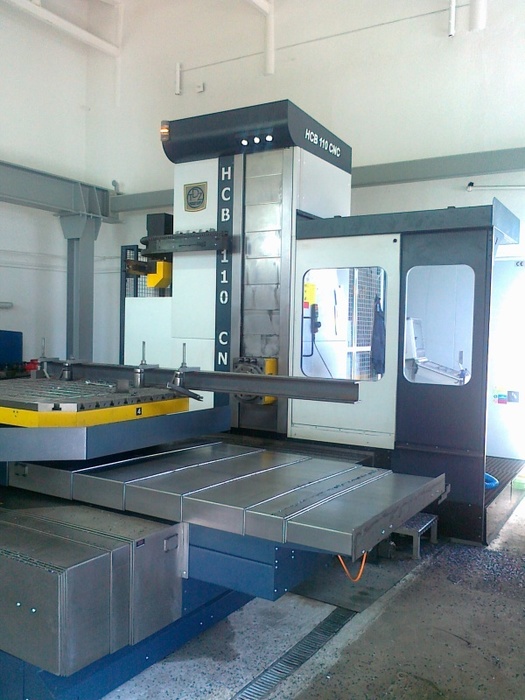

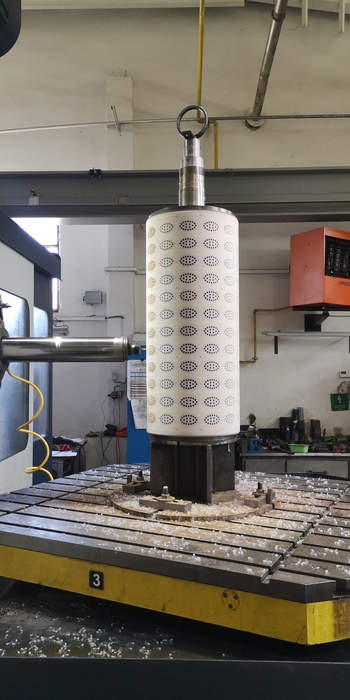

HCB 110 CNC horizontal boring machine
| SPINDLE DIAMETER | 110 mm |
| SPINDLE EXTENTION | 650 mm |
| DIMENSION OF TABLE TOP | 1400 x 1600 mm |
| MAX. WORKPIECE WEIGHT | 8000 kg |
| MAX. ADJUSTMENT OF TABLE | 2400 mm |
| MAX. VERTICAL ADJUSTMENT OF THE SPINDLE | 2000 mm |
| MAX. LENGTH OF TABLE | 1400 mm |
HCB 110 CNC horizontal boring machine
HCB 110 CNC horizontal boring machine
HCB 110 CNC horizontal boring machine
HCB 110 CNC horizontal boring machine

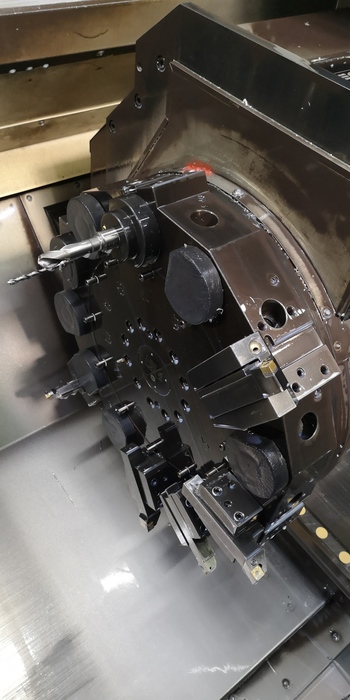

CNC machining centre DMG MORI ecoTurn 510
| ORBITAL DIAMETER ABOVE BED | 680 mm |
| TURNING DIAMETER MAX. | 465 mm |
| LONGITUDINAL TRAVEL (Z) MAX. | 1050 mm |
| ROD DIAMETER | 76/90 mm |
| CHUCK DIAMETER | 250/315 mm |
| INSTRUMENT SETTING | 12 x VDI 40 / 6 x BT |
CNC machining centre DMG MORI ecoTurn 510
CNC machining centre DMG MORI ecoTurn 510
CNC machining centre DMG MORI ecoTurn 510
CNC machining centre DMG MORI Gildemeister NEF 400
| ORBITAL DIAMETER ABOVE BED | 385 mm |
| ORBITAL DIAMETER ABOVE AXLE | 350 mm |
| MAXIMUM TURNING DIAMETER | 350 mm |
| DISTANCE BETWEEN EDGES | 805 mm |
| TURNING LENGTH | 650 mm |
| AXIS X | 255 mm |
| AXIS Z | 800 mm |
| AXIS Z (TAILSTOCK) | 680 mm |
| HEIGHT ABOVE FLOOR | 1000 - 1010 mm |
CNC machining centre DMG MORI Gildemeister NEF 400
CNC machining centre DMG MORI Gildemeister NEF 400
CNC machining centre DMG MORI Gildemeister NEF 400
CNC machining centre DMG MORI Gildemeister NEF 400
CNC machining centre HASS YCM-MV76MA
| AXLE X | 762 mm |
| AXLE Y | 510 mm |
| AXLE Z | 560 mm |
| TABLE SIZE | 915 x 560 mm |
| SPINDLE | 8000 rot./min. |
| CONE | BT/ISO 40 |
The MV76A vertical machining centre is designed for milling, drilling, reaming, thread cutting of small and medium-sized, complex shaped parts. It is a precise and powerful machining centre with sliding guidance, which, thanks to the rigidity of its construction, allows to achieve very precise complex shapes, surfaces and roughness during machining.
CNC machining centre HASS YCM-MV76MA
CNC machining centre TMV-1100A
| TABLE DIMENSIONS | 1200 x 600 mm |
| MAX. TABLE LOAD | 800 kg |
| DISTANCE OF TABLE FROM FLOOR | 900 mm |
| T-GROOVES | 18 x 5 mm |
| SPINDLE CONE | 7/24 cone No. 40 (50) |
| TRAVEL OF AXIS X/Y/Z | 1100 / 600 / 530 mm |
| X/Y/Z AXIS SPEEDS | 30 / 30 / 24 m/min |
| MACHINE MAGAZINE CAPACITY | 24 |
CNC machining centre TMV-1100A

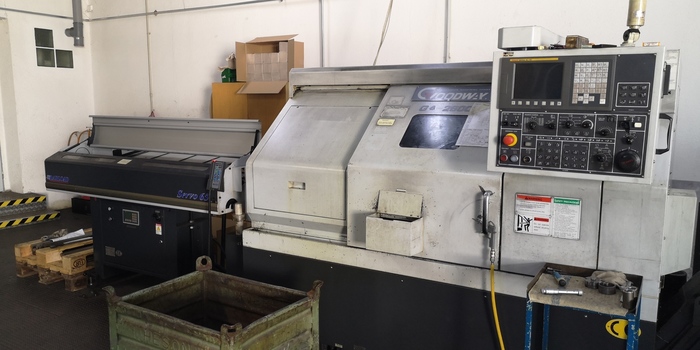

Goodway GA 2600 CNC machining centre
| SPINDLE ROTATION | 76 mm |
| MAX. MACHINING DIAMETER | 350 mm |
| MAX. CHUCK DIAMETER | 254 mm |
| MAX. ROD MATERIAL DIAMETER | 66 mm |
| MAXIMUM LENGTH WHEN USING A SUPPORT TAILSTOCK | 606 mm |
| RANGE OF CONTINUOUSLY VARIABLE SPINDLE SPEED | 40-4000 rot./min. |
Goodway GA 2600 CNC machining centre
Goodway GA 2600 CNC machining centre
