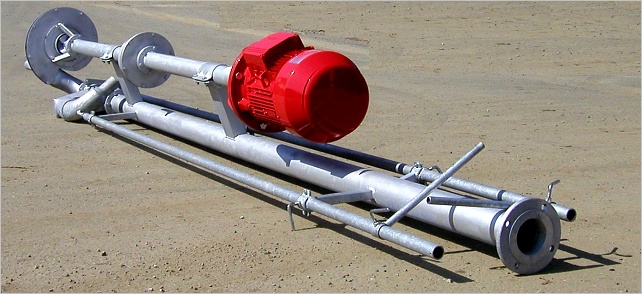

The pump is designed to comply with the typing guidelines for slurry storage design and is mainly designed for use in pumping sumps. The pump here is used to pump slurry from the pumping sump into the storage tanks, or to pump the contents of the pumping sump into mobile means during emptying of the storage tanks, which is carried out via the pumping sump.
Both pump variants can also be used to fill and empty storage sumps. The choice of the appropriate variant is based on the depth of the sump.
The pumping unit is capable of pumping and conveying slurry including fibrous admixtures. Before pumping, the slurry must be homogenised with a mixing attachment.
Design | Parameters |
---|---|
Length | 5 930 mm |
Height (transport position) | 1 200 mm |
Height (loading/unloading position) | 784 mm |
Clearance with container | 204 mm |
Width | 2 450 mm |
Weight without container | 1 280 kg |
Maximum weight limit | 2 950 kg |
Maximum permissible axle weight | 2 550 kg |
Maximum permissible suspension weight | 400 kg |
Maximum speed | 20 km/h |
Wheel and tyre dimensions | 9 x 15,3, ET 40 10/75-15,3 10 PR |
Tyre Pressure | 400 kPa |
Linking device (optional) Eye | 40 mm |
Maximum operating pressure of the hydraulic system | 20 MPa |
