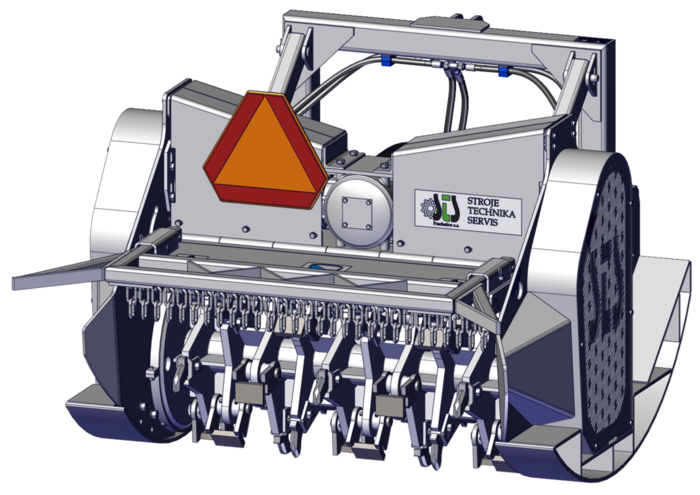

NUD 130-190 mounted universal shredder

NUD mounted universal shredder

Technical description – the mounted universal shredder is mounted on a three-point linkage on a tractor. The drive of a working drum with knives or hammers is driven between the mount and the machine by means of an articulated shaft. The drive is transmitted by a angle transmission to both sides of the drum and by belts to the rotor. The shredder rotor comprises a shaft, to which shaped discs are welded, enabling installation of fixed or floating knives. Larger volumes of crushed biomass require the shredder to be equipped with crawl gears! New rotor concept. The thickness of the processed material at the speed of 1.8 km/h and drum revolutions of 1050 rpm up to 20 cm. At lower speed or while stopped, the machine can crush biomass of any thickness. Motor speed 1050 or 1950 rpm.
